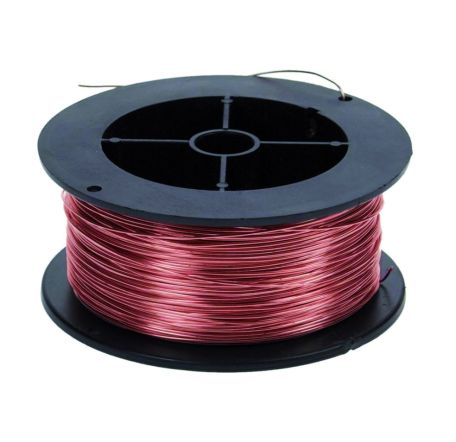

Copper wire, enamel insulation, 50g reel. Also called magnet wire. The enamel coating means that you can wrap it in a coil and the sides of one wire won't create a conducting short path to the next wire. Ideal for use in motor making, speakers, inductors and transformers.
Diameter mm | SWG | Ohms / 1,000m | Approx metres on 50g reel |
2.03 | 14 | 5.34 | 1.7m |
1.62 | 16 | 8.36 | 2.7m |
1.22 | 18 | 14.85 | 4.7m |
0.91 | 20 | 26.41 | 8.5m |
0.71 | 22 | 43.65 | 14.1m |
0.56 | 24 | 70.71 | 22.7m |
0.46 | 26 | 105.6 | 34.0m |
0.38 | 28 | 156.2 | 50m |
0.32 | 30 | 222 | 71m |
