Recording ticker timer & kit

Be the first to review this product

Grouped product items
Product Name	Qty
Recording timer & kit, 5-12V AC -50 dots/sec. $86.00 $94.60
Recording timer - 50 Hz DC, 12V input $135.00 $148.50
Recording timer spare - paper roll, white, 30m. 16mm wide $3.00 $3.30
Recording timer spare - paper roll, white, 180m. 16mm wide $14.00 $15.40
Recording timer spare - carbon discs, pk/25 $4.60 $5.06
Recording timer spare - carbon discs, pk/100. $12.30 $13.53

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

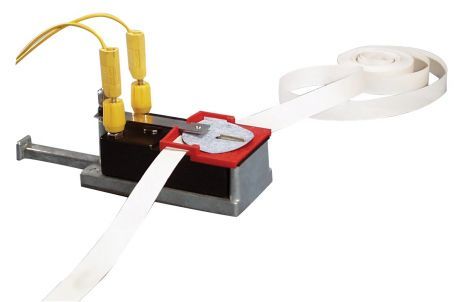

The IEC recording, or ticker, timer comes in two forms - the most popular AC version or an AC/DC version.

The IEC 6-12V. AC recording timer has been used in schools for many years. It seems to be almost indestructable. The heavy diecast base with the rubber feet allows the device to vibrate at 50Hz without the need to clamp it to the bench. The stem from the base permits it to be held on a retort stand for 'falling' experiments.

The IEC 2 speed (25 & 50Hz) DC Recording Timer is very similar to the AC Recording timer, but generates the 25 & 50Hz electronically from an AC or DC source or 12V.AC or DC PlugPak (see 2633001).

Both kits come complete with a 30m roll of white paper and a set of 25 carbon discs for marking the dots on the paper. Large 180m long x 16mm wide paper rolls are available together with packs of 100x carbon discs.

Instructions included. Made in Australia.
