Thermal camera, handheld

New

Thermal camera, handheld

Item code
P829

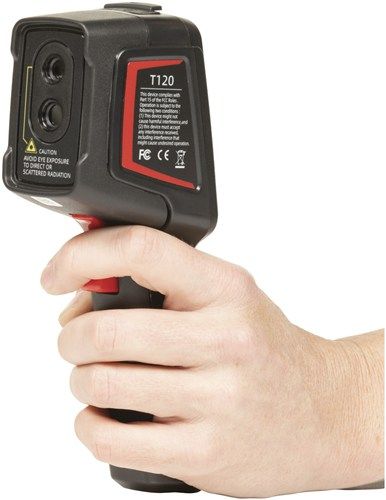

This non-contact thermal imaging camera is ideal for all educational applications.  Ideal for all your heat and thermodynamic studies - a great visual tool for teaching about heat transfer and heat conduction and insulation.

To operate, simply point the camera to the region you want to test and see the warm components or areas show up as yellow, orange or red, and cool areas as blue and green on the 2.4inch display.

$599.00 $658.90

This non-contact thermal imaging camera is ideal for all educational applications.  Ideal for all your heat and thermodynamic studies - a great visual tool for teaching about heat transfer and heat conduction and insulation.

To operate, simply point the camera to the region you want to test and see the warm components or areas show up as yellow, orange or red, and cool areas as blue and green on the 2.4inch display. Press the trigger to save a snapshot to the memory card, and simply connect it to a PC via the USB cable to download the images.

Measures temperatures between -20°C to 400°C. Features include 120x90 WLP IR sensor, 130:1 distance-to-spot ratio, IP54 rating, and built-in rechargeable battery. A 1m USB Type-A to Type-C charging cable and 32GB MicroSD Memory Card are included.

FEATURES
• 120x90 IR resolution
• Large 2.4inch (240x320px) Display
• Up to 5 hours run time per charge
• Fast charge via type C
• IP54 Rated

Specs:
• Detector type: VOx
• Infrared resolution: 120 - 90 @17μm
• Wavelength range: 7.5 to 14μm
• Focal length: 2.28mm
• Field of view: 50° - 38°
• Minimum object distance: 0.5m
• D:S: 130:1
• NETD: ≤60 mK
• Infrared frame rate: 25Hz / 9Hz
• Focusing mode: Focus-free
• Measurement range: Support auto-switching: -20°C to 150°C, 100°C to 400°C
• Measurement accuracy: +-2°C
